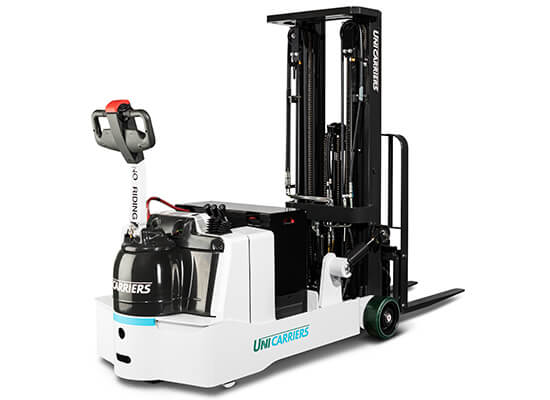

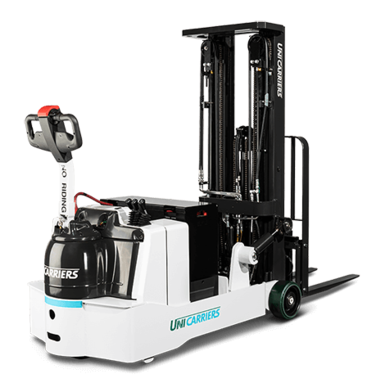

UniCarriers WCX Counterbalance Stacker
3,000 - 4,000 LB. CAPACITY ELECTRIC WALKIE COUNTERBALANCED STACKERS
24Volt AC Powered
The WCX30-WCX40 counterbalanced stackers offer precise control when traveling at any speed and when retrieving or putting away loads. Built to perform, safely in your material handling and warehouse operation. The WCX is perfect for trailer loading/unloading and load transfer/stacking.
| |

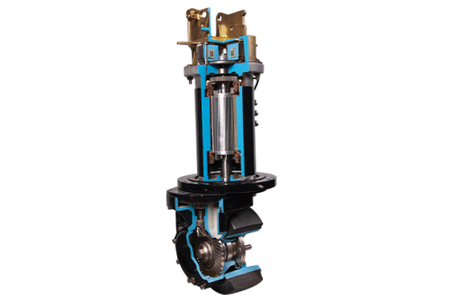

Our AC Motor Does More for Less
Greater torque and faster speeds are only the beginning of what our proven 5.2 HP brushless AC drive motor delivers. This 24V system features an advanced motor controller/AC inverter that distributes consistent power as needed to the AC drive motor or the heavy-duty DC pump motor. The result? Consistently high performance across the battery range, with longer run times between charging.
|

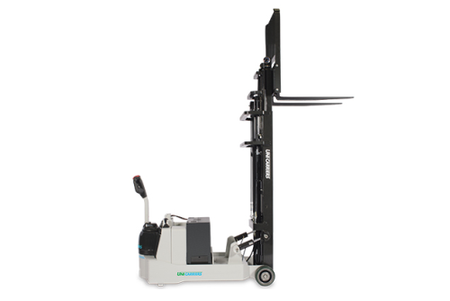

Reach Higher
At 217 inches (18 feet), our lift height is among the highest in the industry — sized just right for two and three shelf racking. The flat face mast design features rolled steel channels, large cross sections, and thick inner rails for increased capacity retention.
|

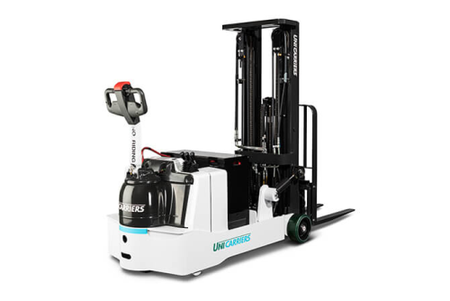

A Turn for the Better
With the WCX30-WCX40 counterbalance pallet stackers you get the exceptional stability that comes from the wide wheelbase and tight turning radius. Its 190º steering arc, ball-bearing steering mechanism, large steering control head, and spring-loaded handle all contribute to easily navigating in the tightest of spaces.
|

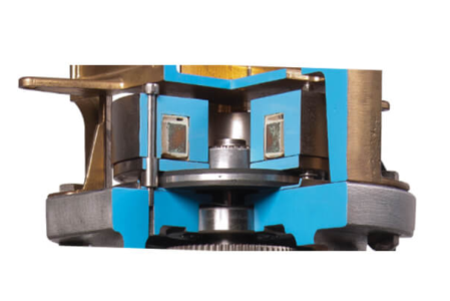

Smart Electric Brake
Regenerative motor torque, proportional plugging and our spring-applied electronically released disc brake work together to reduce component wear, extend part life and eliminate the need for adjustments.
|
|
